Lightweight / Heavy Duty Formwork Rapid Clamp Reusable Concrete Formwork Clamps For Strong Joints

Product Categories
WORKSUN GROUP CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Lightweight / Heavy Duty Formwork Rapid Clamp Reusable Concrete Formwork Clamps For Strong Joints

Brand Name : WKS

Certification : ROHS

Place of Origin : Hebei,China

MOQ : 200 Piece

Price : US $1.00 - 2.00/ Piece

Payment Terms : T/T

Supply Ability : 1000 piece in 10 days

Delivery Time : 10-30 workday

Packaging Details : Bundled / Tied in bundles/Optimization of container loading

Product name : Formwork Rapid Clamp

Size : 500*2000mm, 1000*2000mm etc

Tube Length : 750mm 720mm 800mm 900mm 1200mm

Width : 800mm

Pitch : 10mm

Standardcompliance : Meets ASTM and EN Standards

Sample : Available

Reusability : Reusable Multiple Times

Load Capacity : 3500LBS

Weight : Lightweight to Heavy Duty Options

Color : Typically Silver / Black / Custom Colors Available

Contact Now

Construction Formwork Accessories For Strong Joints And Structural Stability

Steel Formwork Accessory For Heavy Duty Slab And Beam Support Systems

Formwork Clamp Accessory: High-Strength Concrete Shuttering Lock

The Formwork Clamp Accessory is a critical fastening component used to securely lock steel, aluminum, or timber formwork panels during concrete pouring. Designed to withstand high hydrostatic pressure, it ensures dimensional accuracy and prevents concrete leakage in walls, beams, and columns for building and civil engineering projects.

Key Features & Functions
  • High Load Capacity: Manufactured from Q235 steel or QT450-10 cast iron, these clamps provide superior tensile strength to resist concrete bursting pressure, ensuring formwork stability.
  • Quick Assembly System: Features a rapid wedge or lever-action design for tool-free installation and stripping, significantly reducing on-site labor time and costs.
  • Reusable & Durable: Hot-dip galvanized or electroplated surface treatment offers excellent corrosion resistance, allowing for multiple reuse cycles across projects.
Technical Parameters
  • Material: Q235 Steel / QT450-10 Cast Iron
  • Surface Treatment: Hot-dip galvanized, electro-galvanized, or painted
  • Common Types: Rapid wedge clamps, F-clamps, beam clamps, and column clamps
  • Standards: Compliant with international construction safety requirements
Competitive Advantages

Our Formwork Clamp Accessories offer full compatibility with major formwork systems (including Peri-compatible designs), reducing the risk of formwork failure. With strict quality control on raw materials and casting precision, we deliver reliable performance for high-rise buildings and infrastructure projects, ensuring cost savings through extended service life and reduced maintenance.

Product Specifications
Product Specifications & Features Function
Lightweight / Heavy Duty Formwork Rapid Clamp Reusable Concrete Formwork Clamps For Strong Joints Wedge & Pin
  • Weight: Wedge: 0.03KG; Pin: 0.064KG
  • Material: Q235 Steel
  • Color: Silver/Yellow
  • Size: Pin: 45mm-200mm
  • Diameter: 16mm
  • Surface treatment: Plain or Galvanized
 Fastening device used to securely link all aluminum alloy panels together.
Lightweight / Heavy Duty Formwork Rapid Clamp Reusable Concrete Formwork Clamps For Strong Joints Tie-Rod
  • Weight: 0.75/1.45/1.5/2.25KG/m (varies by diameter)
  • Material: Q235 45# Steel
  • Color: Gold, Silver, Raw
  • Size: Custom length
  • Diameter: 10/12/15/16/17/20/22mm
  • Surface treatment: Galvanized or Black
  • Breaking load: 90KN-260KN (varies by diameter)
 Connecting device for firmly linking wall panels in various formwork systems.
Lightweight / Heavy Duty Formwork Rapid Clamp Reusable Concrete Formwork Clamps For Strong Joints Wing Nut & Anchor Nut
  • Weight: 0.28-1.3KG (varies by size)
  • Material: Q235 or QT450
  • Color: Gold, Silver, Raw
  • Plate diameter: 50-130mm
  • Thread diameter: 12/15/17/22mm or custom
  • Surface treatment: Galvanized or Painted
 Used with tie rods to securely link wall and column panels in formwork systems.
Lightweight / Heavy Duty Formwork Rapid Clamp Reusable Concrete Formwork Clamps For Strong Joints Adjustable Column Formwork Clamp
  • Weight: 25-28KG/SQM
  • Material: Q235 Steel
  • Color: Silver or Custom
  • Adjustable size range: 600-5500mm
  • Surface treatment: Galvanized or Painted
 Used in column formwork systems to secure panels and prevent deviation.
Lightweight / Heavy Duty Formwork Rapid Clamp Reusable Concrete Formwork Clamps For Strong Joints Formwork Clamp
  • Weight: 2.8KG/4.4KG (by production process)
  • Material: Q235/Q450/Q345
  • Size: 430/434mm
  • Process: Casting Iron or Forging
  • Color: Gold & Silver or Custom
  • Surface treatment: Galvanized or Natural
 Used in steel frame formwork systems to link and secure wall panels tightly.
Lightweight / Heavy Duty Formwork Rapid Clamp Reusable Concrete Formwork Clamps For Strong Joints Rapid Formwork Clamp
  • Weight: 4.3KG
  • Material: Steel
  • Process: Casting Iron or Forging
  • Color: Gold & Silver or Custom
  • Surface treatment: Galvanized
 Used in steel frame formwork systems for quick linking and securing of wall panels.

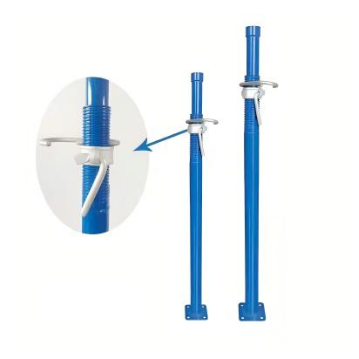

Lightweight / Heavy Duty Formwork Rapid Clamp Reusable Concrete Formwork Clamps For Strong Joints Adjustable Steel Prop
  • Weight: 4.7KG-31KG (by size)
  • Material: Q195/Q235/Q345
  • Normal Size: 2200-4000mm or custom
  • Tube thickness: 1.5mm-3mm
  • Outer tube diameters: 48/56/60mm
  • Inner tube diameters: 40/48mm
  • Color: Blue, Red, Yellow, Green or Custom
  • Surface treatment: Dipping Painted
 Supports slab panels and adjusts them to the same horizontal plane in slab formwork systems.
Lightweight / Heavy Duty Formwork Rapid Clamp Reusable Concrete Formwork Clamps For Strong Joints Push-Pull Prop
  • Weight: 12.18-43.78KG (by size)
  • Material: Q235 Steel
  • Size: 900mm+1800mm or custom
  • Tube thickness: 1.5mm-3.0mm
  • Outer tube diameters: 48/56/60mm
  • Inner tube diameters: 40/48mm
  • Color: Blue, Red, Yellow, Green or Custom
  • Surface treatment: Spray Painted/Powder Coated/Galvanized
 Supports wall panels and ensures proper alignment in formwork systems.
Lightweight / Heavy Duty Formwork Rapid Clamp Reusable Concrete Formwork Clamps For Strong Joints Flat Wall Tie
  • Weight: 0.094-0.225KG (by size)
  • Material: Q235 Steel
  • Size: 210,250,240,300,320mm
  • Color: Silver
  • Surface treatment: Galvanized
 Links wall panels and ensures accurate positioning in aluminum alloy formwork systems.
Lightweight / Heavy Duty Formwork Rapid Clamp Reusable Concrete Formwork Clamps For Strong Joints Steel Prop Fork-Head
  • Weight: 2.5KG
  • Material: Q195/Q235 Steel
  • Height: 330mm or custom
  • Size: 230*140mm or custom
  • Sleeve thickness: 2.5/3.0/3.5/4mm
  • Color: Silver
  • Surface treatment: Galvanized, Painted or Custom
 Supports H20 timber beams in H20 timber beam formwork systems.

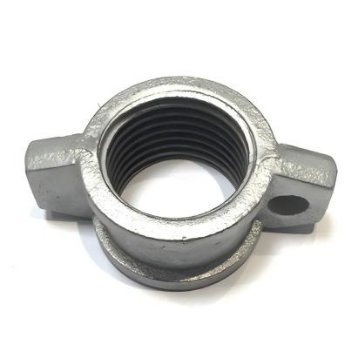

Lightweight / Heavy Duty Formwork Rapid Clamp Reusable Concrete Formwork Clamps For Strong Joints Prop Nut
  • Weight: 0.32KG-0.72KG
  • Material: QT450/Q235
  • Size: φ60mm, φ76mm
  • Color: Customer Required
  • Process: Ductile Iron Casting
  • Surface treatment: Galvanized
 Adjusts steel props in formwork support systems.
Frequently Asked Questions
Are you a trading company or a manufacturer?

We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group has two production bases with over 32 years of manufacturing experience.

What do you do?

We provide professional implementation solutions, high-quality products, and efficient technical support services in formwork and scaffolding.

Do you provide samples? Is the sample chargeable or free?

Yes, we provide samples. Customers are responsible for shipping costs.

What do you need to make a brief design and quotation for our construction project?

We require architectural and structural drawings of the project.

How to get quotation?

For simple projects with your own engineer, provide a bill of materials. For complex projects like apartments and residences, our consultants will develop application plans based on your drawings.

How long does it take to make a brief design and quotation after providing structural drawings?

Typically 5-8 days to complete specific plans and detailed quotations.

How long is the estimated delivery time after contract signing?

Usually 30-60 days for stocking completion, depending on project complexity.

What are your payment terms?

T/T 30% deposit before manufacture, 70% balance against B/L Copy, or L/C.
